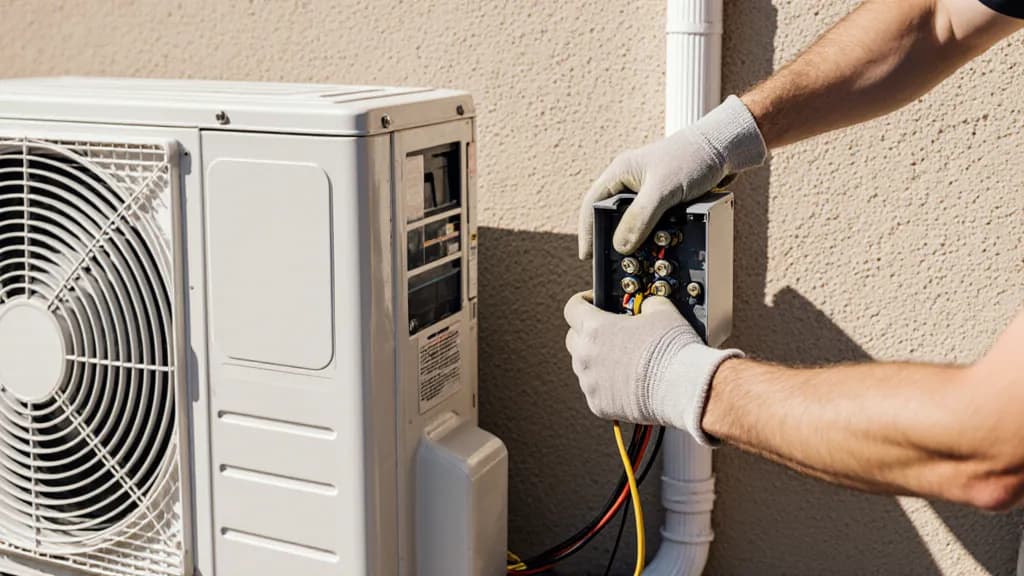

Mini Split Electrical Wiring in Los Angeles

Ductless mini splits have become one of the most popular ways to cool and heat older Los Angeles homes that were never built for central air. But behind every quiet, efficient unit is electrical work that has to be done to code, and getting the mini split electrical wiring right is what keeps the system safe, warrantied, and running for years.

Why a Mini Split Needs Dedicated Electrical Work

A mini split is not a plug-in appliance. The outdoor condenser draws a steady, significant load, so it almost always needs its own dedicated circuit running from your electrical panel — not a shared line with outlets or lights. Undersized or shared wiring is a common cause of tripping breakers, overheating, and voided manufacturer warranties. A licensed mini split electrician sizes the circuit to the unit's exact specifications and ties it into your panel with the correct breaker.

Electrical Requirements for a Mini Split in Los Angeles

Every unit is different, but most single-zone installs share the same core mini split electrical requirements. Here is what a proper install includes:

• Dedicated circuit: one home run from the panel to the condenser, sized to the unit.
• Correct voltage: smaller units run on 120V, but most 12,000–36,000 BTU systems in LA homes are 240V.
• Right breaker size: commonly a 15–30 amp breaker depending on the model's MOP (maximum overcurrent protection) rating.
• Disconnect box: a weatherproof mini split disconnect box mounted within sight of the outdoor unit, required by code.
• Whip and conduit: a proper electrical whip connecting the disconnect to the condenser, protected from LA sun and weather.
• Correct wire gauge: wire sized to the amperage and run length so it never overheats.

How many amps does a mini split need?

It depends entirely on the model. A small bedroom unit might only need a 15-amp, 120V circuit, while a multi-zone or larger system can call for a 30-amp, 240V circuit. Always wire to the minimum circuit ampacity (MCA) and maximum breaker size printed on the unit's data plate — never guess.

Why the disconnect box matters

The mini split disconnect box lets a technician safely cut power to the outdoor unit for service without shutting off your whole panel. LA-area inspectors expect it mounted within sight of and close to the condenser. Skipping it is one of the fastest ways to fail an inspection.

Permits and Inspection in Los Angeles

Adding a new dedicated circuit for a mini split is electrical work that typically requires a permit from LADBS or your local city building department (Pasadena, Burbank, Glendale, and neighboring cities each run their own). A permitted, inspected install protects you at resale and keeps your homeowner's insurance valid. A licensed C-10 contractor pulls the permit, does the work to current NEC and California code, and schedules the inspection so you don't have to. If your existing wiring shows problems along the way, it's worth handling those electrical repairs before the new circuit goes in.

Does Your Panel Have Room for a Mini Split?

Many older LA homes still run on 100-amp service with a full panel and no open breaker slots. Before adding a mini split circuit, an electrician checks whether your panel has the physical space and spare capacity for the new load. If it doesn't, you may need an electrical panel upgrade first — especially if you're also running an EV charger, heat pump, or other modern high-draw equipment. It's better to find this out during planning than after the AC crew shows up.

What Affects Mini Split Wiring Cost in LA

Electrical wiring is usually a separate line item from the HVAC installation. Costs in Los Angeles vary with the specifics of your home, so treat any figure as a range and get a written estimate:

• Distance from the panel: longer wire runs and more conduit raise labor and material costs.
• Panel capacity: if a panel upgrade or sub-panel is needed, that's a larger project.
• Number of zones: multi-zone systems may need a larger circuit or more than one.
• Wall and attic access: finished walls, stucco, and tight crawlspaces add labor.
• Permit fees: set by your city and passed through on the invoice.

Prices and permit fees change and vary by project, so always confirm with a licensed electrician before you commit.

Mini Split Electrical Wiring FAQ

Do mini splits need a dedicated circuit?

Yes, in nearly all cases. The outdoor condenser should have its own dedicated circuit sized to the unit. Sharing a circuit with outlets or lights can trip breakers, overheat wiring, and void the warranty.

Is a mini split 120V or 240V?

It depends on the model. Smaller single-room units often run on 120V, while most mid-size and larger systems installed in LA homes use 240V. The unit's data plate specifies the required voltage.

Can an HVAC company do the electrical wiring?

Some do, but new dedicated circuits and panel work should be performed by a licensed C-10 electrical contractor to meet code and pass inspection. Many homeowners have the HVAC crew set the unit and a licensed electrician handle the circuit, disconnect, and permit.

Do I need a permit for mini split wiring in Los Angeles?

Adding a new circuit generally requires an electrical permit from LADBS or your local city. A permitted, inspected install protects your insurance coverage and your home's value at resale.

How long does the electrical work take?

For a typical single-zone install with an available panel slot, the circuit, disconnect, and whip can often be completed in a day. Panel upgrades or long, difficult wire runs add time.
