Generator Interlock Kit Installation in Los Angeles

When the lights go out during a Santa Ana wind event, a portable generator is only as useful as the way it connects to your house. A generator interlock kit installation lets you power your home's own circuits safely from the panel — no extension cords snaking through windows, and no dangerous backfeed onto utility lines.

What a Generator Interlock Kit Actually Does

A generator interlock is a sliding metal plate mounted on the front of your electrical panel. It physically prevents the main breaker and a dedicated generator backfeed breaker from being on at the same time. With the main off, the generator feeds your panel; with the main on, the generator breaker is locked out.

That one mechanical rule is the whole point. It keeps generator power from flowing back through your meter onto the street, where it can injure line workers restoring service, and it keeps utility power from slamming into your generator when the grid comes back.

A complete setup usually includes:

A listed interlock kit made for your exact panel make and model
A 2-pole backfeed breaker sized to your generator connection (commonly 30 or 50 amps)

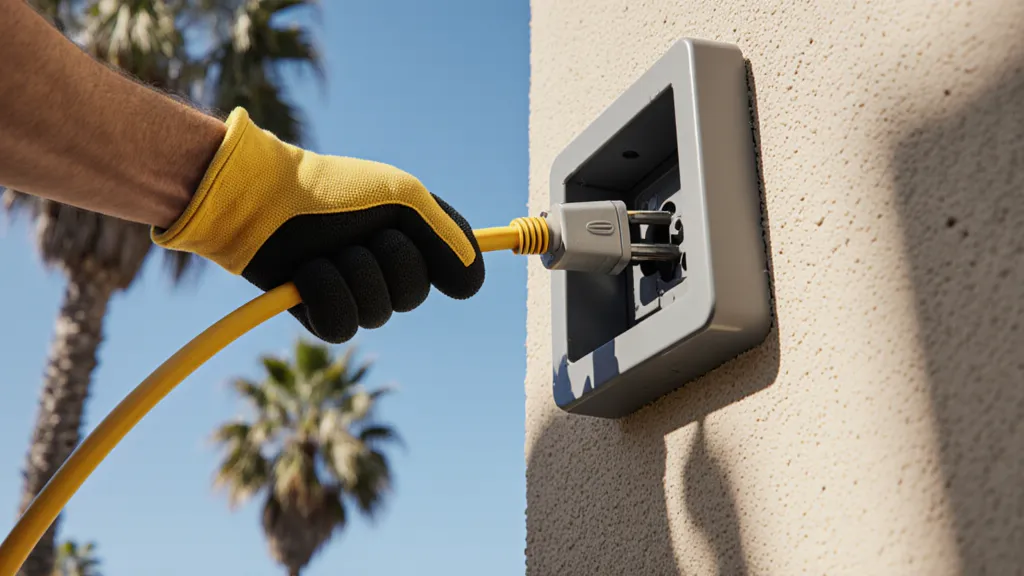

An outdoor power inlet box (for example, an L14-30 or 50-amp inlet) wired back to that breaker
A matching generator cord from the generator to the inlet

Generator Interlock vs. Transfer Switch

Both are legitimate ways to connect a portable generator. The difference is how you choose what runs.

Interlock kit: You can power any circuit in the panel, and you manage load by switching breakers on and off yourself. Usually the lower-cost option when your panel has a listed kit and the right open spaces.
Manual transfer switch: A separate sub-panel with a set of pre-selected circuits. Simpler to operate during an outage, but limited to the circuits you chose ahead of time. See our guide to generator transfer switch installation for how those compare.
Automatic transfer switch: Paired with a permanently installed standby generator that starts on its own. The most convenient, and the most expensive — covered in our whole house generator installation guide.

For most Los Angeles homeowners with a 5–10 kW portable generator who want to keep the fridge, lights, internet, and furnace fan running through an outage, an interlock is a practical middle ground.

Is Your Panel a Good Candidate?

Not every panel can take an interlock, and this is where a site visit matters.

Panels that usually work

Many modern panels from major manufacturers have a UL-listed interlock kit designed for them. The kit typically requires the backfeed breaker to sit in a specific position next to the main breaker, so you may need to relocate a circuit or two to free up that space.

Panels that usually don't

Older equipment common in LA homes built from the 1950s through the 1980s — including Zinsco and Federal Pacific Stab-Lok panels — generally has no listed kit, and adding generator backfeed to a panel with known breaker problems isn't wise. In that case the right move is often Zinsco panel replacement or a full electrical panel upgrade, with a generator-ready panel chosen from the start.

If you have solar

Tell your electrician up front. Grid-tied solar inverters need to be isolated while you're on generator power, and the whole arrangement should be reviewed before anything is wired.

Permits, Code, and Safety in Los Angeles

Are generator interlock kits legal in California? A listed interlock kit, installed to the manufacturer's instructions under an electrical permit, is an accepted transfer method with most building departments. Rules and inspection practices vary, so the permit goes through LADBS in the City of Los Angeles or your own city's building department in places like Pasadena, Glendale, Burbank, or Arcadia.

Who your utility is doesn't change the interlock itself. Most of the region is on SCE, whose Public Safety Power Shutoffs can hit windy foothill neighborhoods in Altadena, Sierra Madre, and Monrovia. City of LA homes are on LADWP, and Pasadena, Glendale, and Burbank have their own municipal utilities (PWP, GWP, and BWP). Whichever one serves you, crews assume de-energized lines are safe, which is why an unprotected "suicide cord" plugged into a dryer outlet is never acceptable.

A few non-negotiables:

Run the generator outdoors only, well away from doors, windows, and vents — carbon monoxide is the biggest generator hazard.
Turn the main breaker off before turning the generator breaker on, every time.
Bring loads up one at a time so you don't overload the generator.
Keep the generator's rating in mind — it can't run a central AC, electric range, and EV charger at once.

What Does Generator Interlock Kit Installation Cost?

Generator interlock kit installation cost depends on your panel, how far the inlet box sits from the panel, wall construction, and permit fees. As a rough guide for LA-area homes:

Kit and backfeed breaker only (panel already has space): usually the smallest part of the bill
Typical complete install with inlet box, wiring, and permit: often in the high hundreds to around $2,000
Long inlet runs, stucco or finished-wall work, or circuit relocation: can run higher
Panel replacement needed first: a separate, larger project

Prices vary with each home and should always be confirmed in a written estimate. Compared with a transfer switch, an interlock is often less expensive — but only when your panel supports a listed kit.

Frequently Asked Questions

Can I install a generator interlock kit myself?

We don't recommend it. The work happens inside a live panel, requires a permit, and one mistake can create a backfeed hazard. A licensed C-10 electrician handles the permit and inspection.

What size generator inlet box do I need?

Match the inlet to your generator's largest twist-lock outlet — commonly 30 amps (L14-30) for mid-size portables or 50 amps for larger units. The backfeed breaker is sized to that inlet.

Will an interlock let me run my whole house?

It lets you choose from every circuit in the panel, but the generator's capacity sets the limit. Most homeowners run essentials and rotate larger loads.

Does an interlock work with a standby generator?

Permanently installed standby generators are normally paired with an automatic transfer switch instead. Interlocks are best suited to portable generators.

How long does installation take?

Many straightforward installs are completed in a day, plus the inspection. Panel changes or long wiring runs add time.
